材料 Material
钢制部件：SUS304，SUS316L 密封件：EPDM，PTFE
Steel parts:SUS304,SUS316L Seal:EPDM,PTFE
应用 Applications

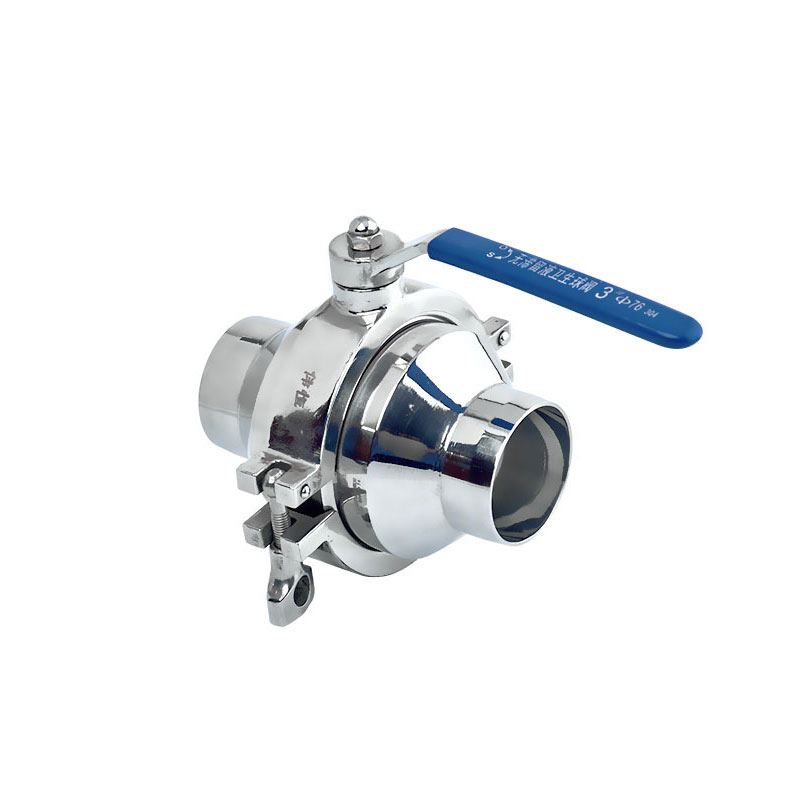

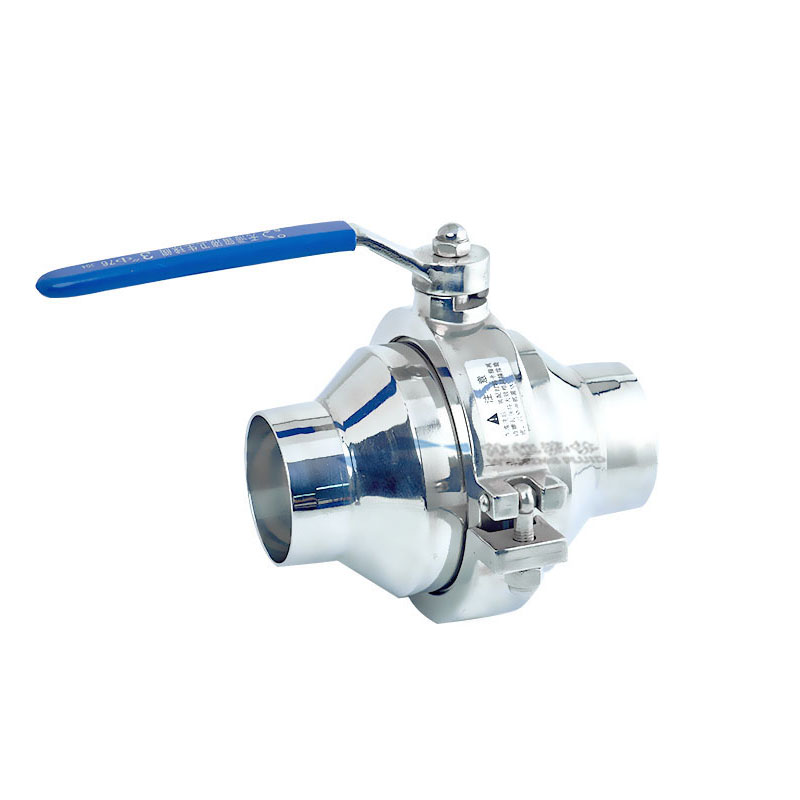

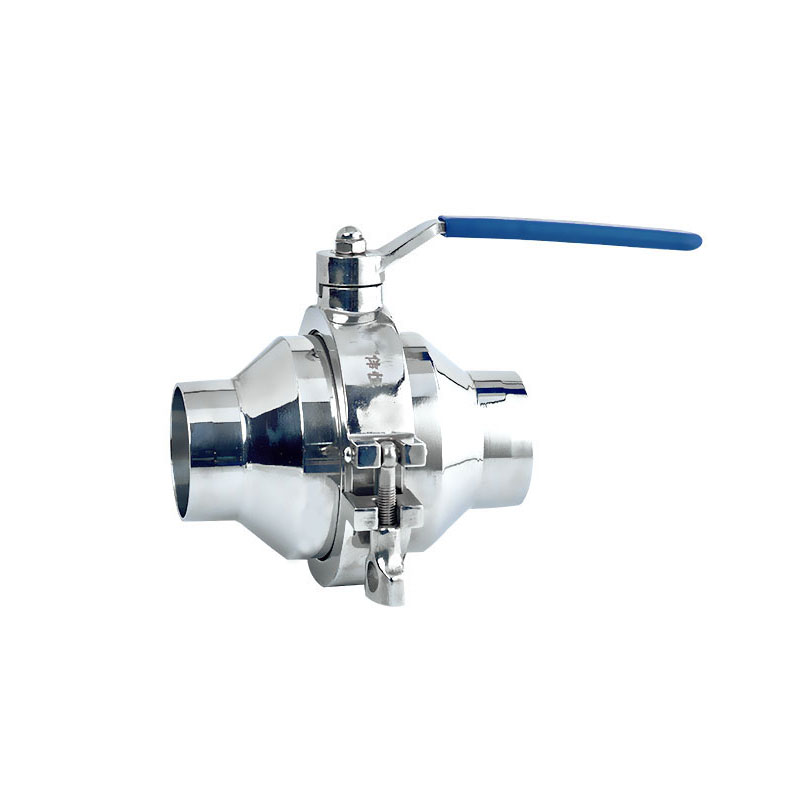

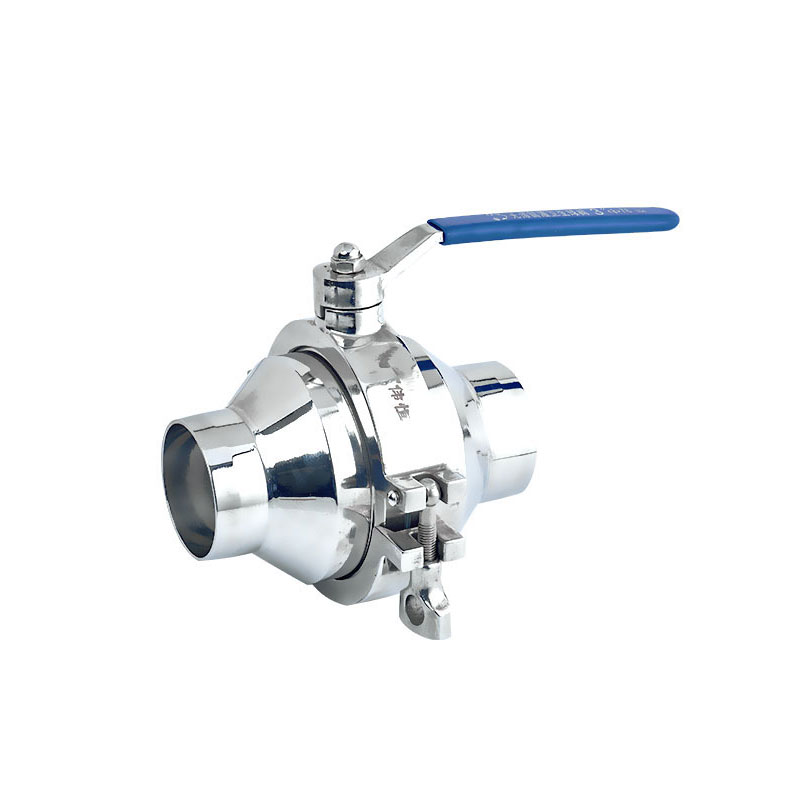

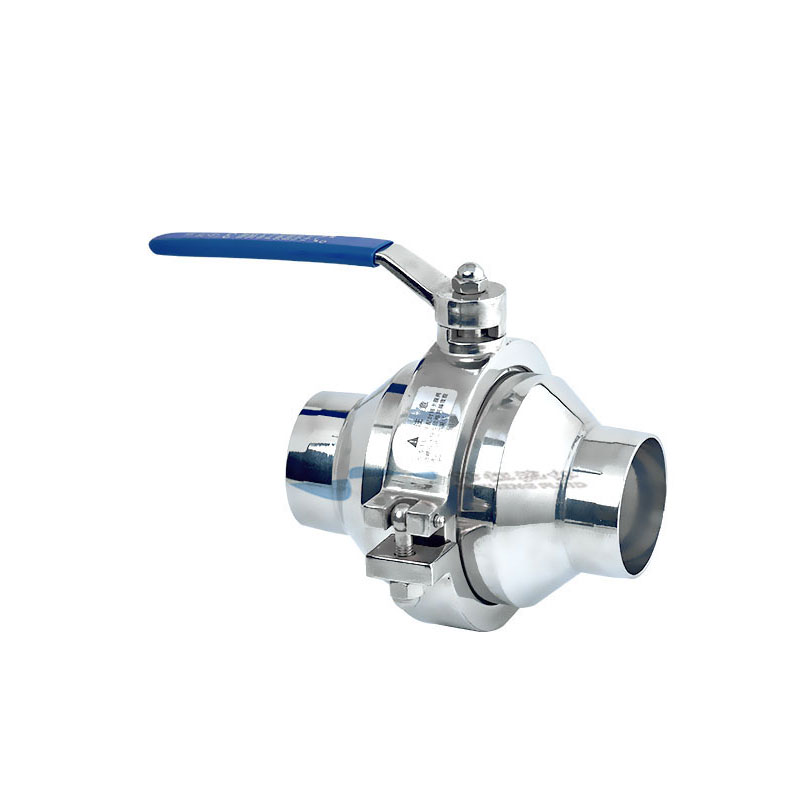

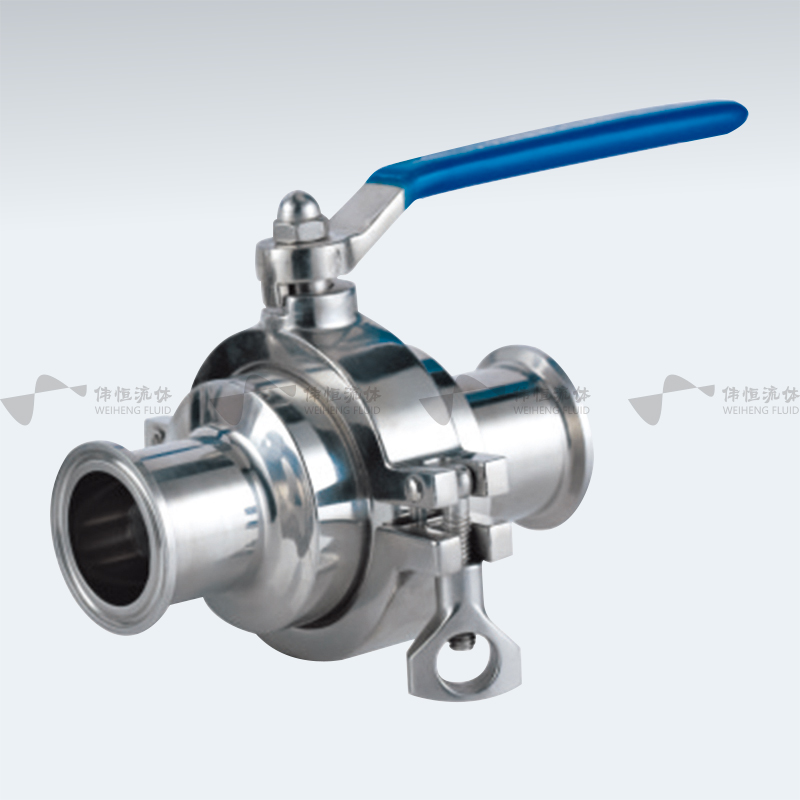

无滞留球阀为全包式球座设计，解决了球阀液体滞留阀腔内的问题，该球阀适用于生物制药工程。
Stranded ball valve for the all inclusive tee design to solve the ball valve liquid retention valve cavity and the valve used in bio pharmaceutical engineering.
设计特点 Design Feature
阀体组合卡箍连接
无需专业工具即可拆卸阀门操作扭矩小
垫圈根据FDA177.2600
连接卡箍焊接螺纹，DIN.SMS.ISO.IDF.BPE.RJT
无论是何种连接方式，阀体都可进行更换，而不会改变阀门的总长度Body combination clamp connection
Without professional tools to remove the valve
Operating torque is small
Washer according to FDA177.2600
Connecting clamp welding thread, DIN.SMS.ISO.IDF.BPE.RJT
No matter what kind of connection, the valve can be replaced without changing the total length of the valve
产品特征 Product Features
1、阀杆防飞出设计
2、阀体与阀盖连接带定位台阶设计
3、全流通
4、无滞留设计
5、阀杆密封填料自补偿装置
6、挂锁装置
Valve stem anti-flying design
The connection between valve body and bonnet with positioning stage design
Circulation
No retention design
Stem seal packing with compensating device
Padlock device
工作原理 Working Principle
通过90°旋转手柄，从而360°带动有贯通腔的精确制造的球体， 以开启或关闭阀门，达到控制介质流量。
Through 90 ° rotary handle, drive the ball body which have transfixion cavity and precise manufacture, to open or close the valve, reaching control the flow rate of medium.
