焊接直通球阀
产品详情
产品评论(0)

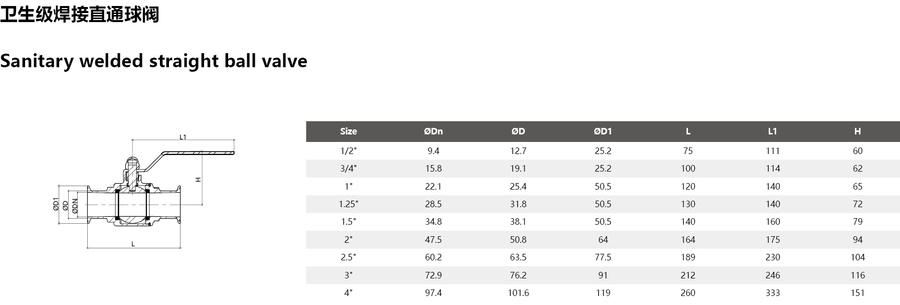

卫生级焊接直通球阀

产品描述   Product description

连接方式:焊接、 快装、法兰、螺纹(供选)

属系:卫生级球阀系列

标 准: ISO、DIN、IDF、SMS、3A等

钢制部件:SUS304,SUS316L

质 量: 产品内外用高档抛光设备处理,达到表面精密度要求

密封件:PTFE,PPL

包 装: 纸箱/木箱包装/防震膜

工作压力: 1.0Mpa

工作温度: —10℃+150℃

对外加工: 可以按用户要求来图、来样加工非标产品、

适用介质:气体、液体、蒸汽


Connection mode: welding, quick assembly, flange, thread (optional)

Department: sanitary ball valve series

Standards: ISO, DIN, IDF, SMS, 3a, etc

Steel parts: SUS304, SUS316L

Quality: internal and external products are treated with high-grade polishing equipment to meet the surface precision requirements

Seal: PTFE, ppl

Packing: Carton / wooden case / shockproof film

Working pressure: 1.0MPa

Working temperature: - 10 ℃ + 150 ℃

External processing: it can process non-standard products according to drawings and samples required by users

Applicable medium: gas, liquid and steam

应用   Applications

该类型球阀系列是一款卫生型的用于物料传送控制的一类阀门系列。广泛应用于食品、饮料加工,以及制药和化学工业领域。

The series ball valves are used to transfer controlling the material, Which extensively use to food, beverage processing and pharmacy, chemical industry areas.

标椎设计 standard Design

有各标准的阀门系列可以向客户提供,即用于DIN标准系列,3A标准系列,SMS标准系列,ISO/IDF标准系列,BS/RJT标准系列,ASME/BPE等标准系列。

球阀的组成部件一般包括:一个手柄、一个带有贯通腔的球体、阀体、阀门轴芯以及轴密封圈。

现有的球阀系列规格有:焊接式球阀、卡箍式球阀、螺纹式球阀等系列球阀。

Have different standard of valve series can supply for custommers, they are the DIN standard series,3A standard series, SMS standard series, ISO/IDF standard series, BS/RJT standard series, ASME/BPE etc.

The constitute elements of ball valve always included: one

handle,one ball body with transfixion cavity, valve body, valve central spindle and spindle shaft seal.

The specification of ball valve series are welded ball valve, clamped ball valve, threaded ball valve etc.
