气动方形球阀
产品详情
产品评论(0)

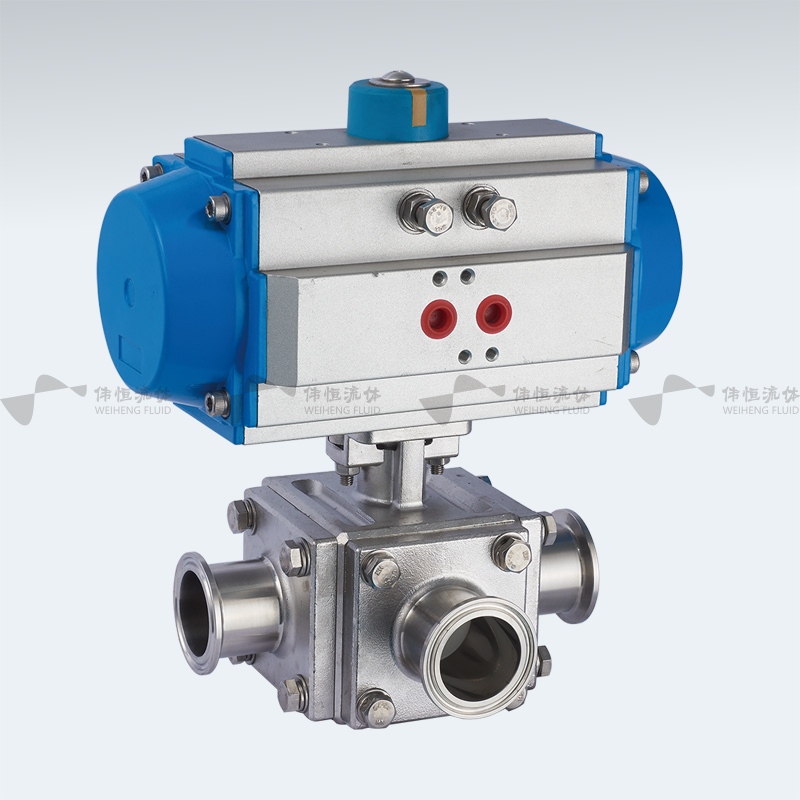

方形气动球阀

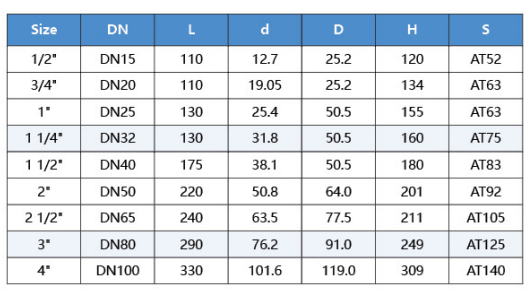

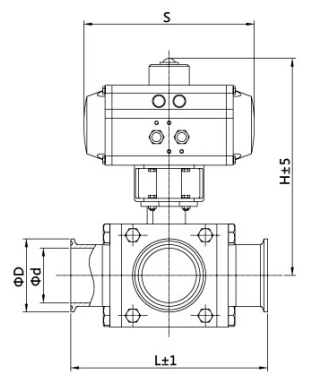

Size

d1

d2

K

L1

L2

H

B

1/2"

9.5

12.7

25.4

90

120

165

48

3/4"

16

19.1

50.5

90

115

150

70

1"

22.5

25.4

50.5

115

168

200

83

1 1/4"

28

31.8

50.5

125

168

210

83

1 1/2"

35

38.1

50.5

140

219

225

95

2"

47.5

50.8

64

156

230

245

105

2 1/2"

59.5

63.5

77.5

195

250

256

110

3"

73

76.2

91

220

275

300

122

3 1/2"

85

89

106

230

275

325

122

4"

98

101.6

119

240

315

260

132


应 用 Applications

该阀卫生设计,在食品加工、饮料、果汁、酿酒、生物制药等领域有着广泛的应用。

The sanitary design of the valve is widely used in food processing, beverage, juice, wine making, biopharmaceutical and other fields.

技术规范 Technical Specifications

规格:1"-4",DN25-DN100

材质:1.4301/304,316L/1.4404 垫圈:PTFE,TFM(FDA 177.1550)

最高温度:-20℃到150℃(标准)-30℃到200℃(选项) 压力范围:10-30bar(取决于密封材质和温度)

操作方式:手动、气动、电动

表面处理:内表面Ra0.6μm,外部喷砂认证:PED/97/23/EC,3A,FDA

自控配置:过程控制器/阀门定位器,0/4. 20mA,0 5/10V(详见控制器目录)(选项)

阀门顶部控制单元,AS-1总线通讯,接线端子连接(选项)位置传感器PNP NPN(选项)

Size:1"-4",DN25-DN100 Material:1.4301/304,316L/1.4404 Gaskets:PTFE/TFM(FDA 177.1550)

Temperature:-20℃ to 150℃(Standard)

-30℃-200℃(Option)

Pressure:10-3-bar(Depending on seal material and temperature) Operating modes:manual,pneumatic,electric

Surface finishing:Internal surface Ra0.6μm,external surface sand blast. Certificate:PED/97/23/EC,3A,FDA

Control:process controller,valve positioning(see controller directory) C-TOP control unit.AS-1 Device Net bus communication terminal connection(options),position sensor PNP NPN(options)
