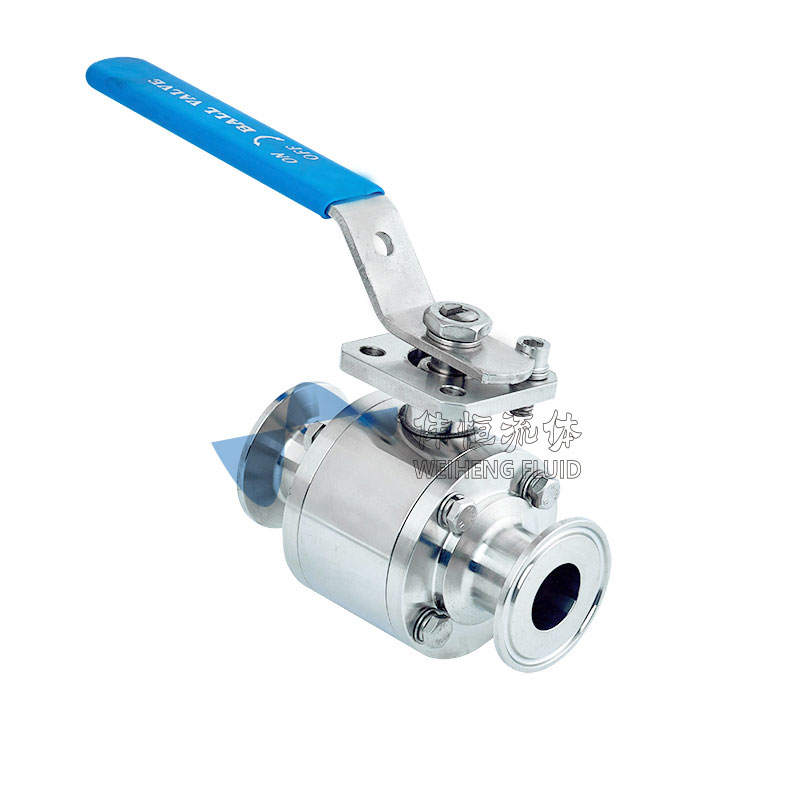

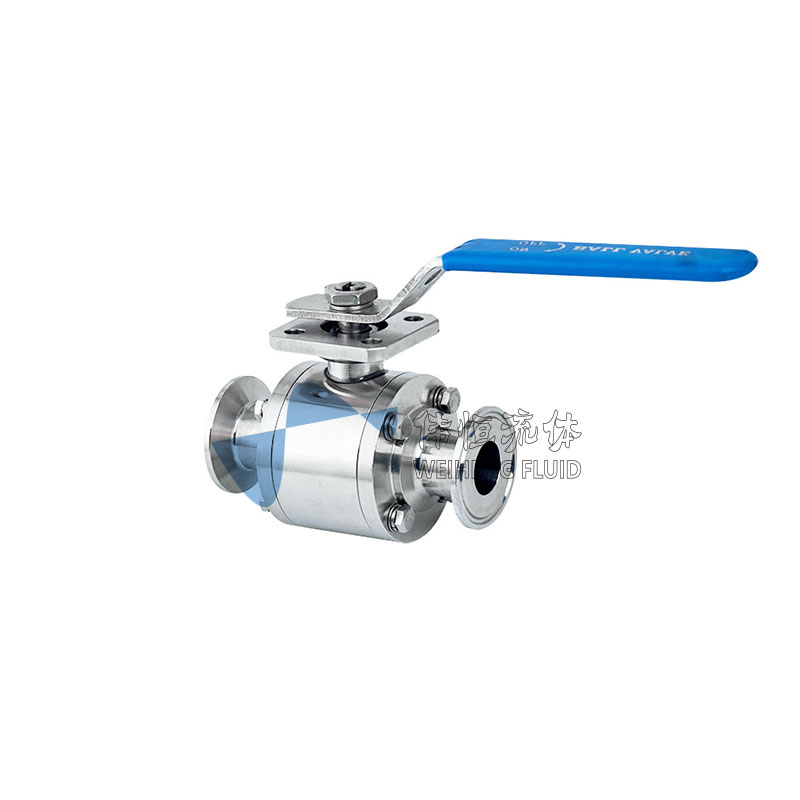

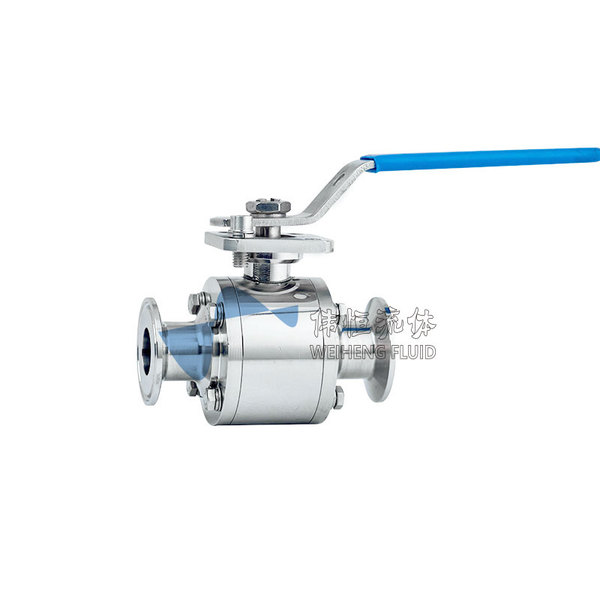

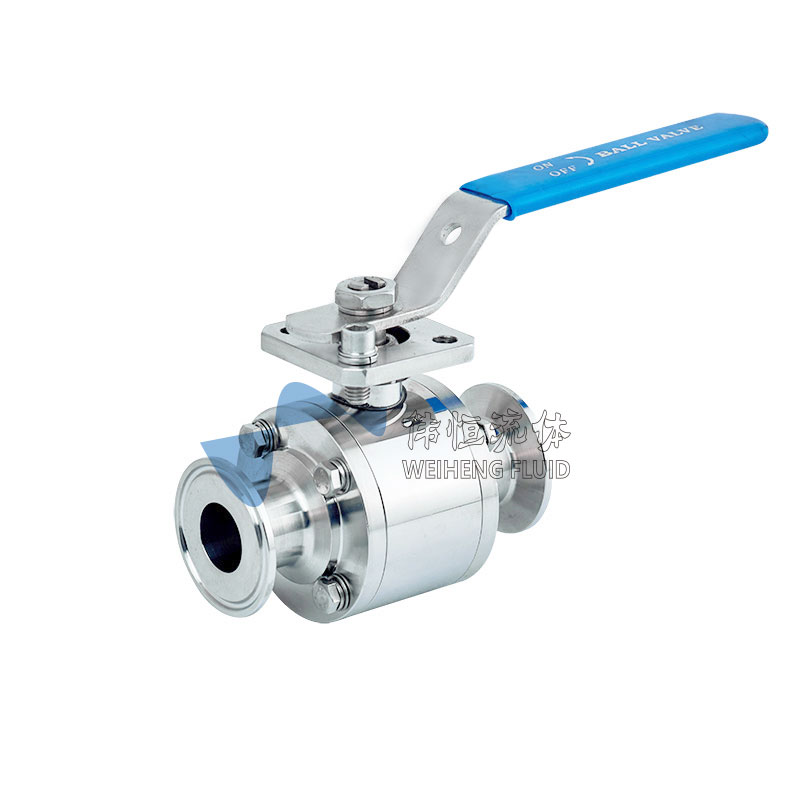

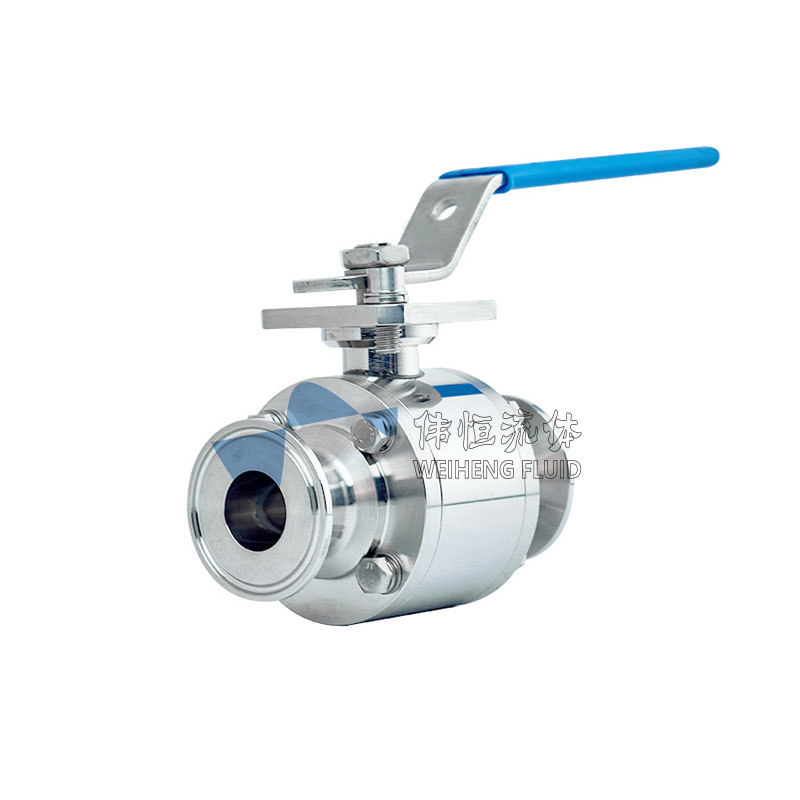

锻件三片式球阀

市场价: 0.0
产品详情

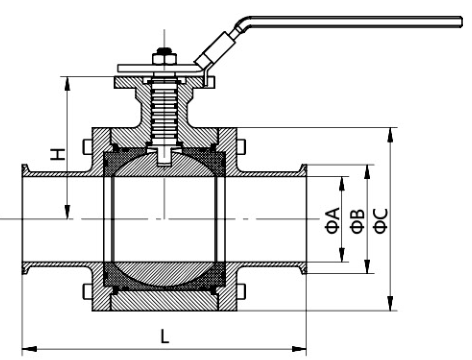

三片式全包球阀


SIZE

A

B

C

L

H

1/2"

9.7

50.5

56

90

59

3/4"

16

50.5

62

90

61

1"

22.4

50.5

70

115

66

1 1/2"

35.1

50.5

92

142

80

2"

47.8

64

108

156

91

2 1/2"

59.5

77.5

130

197

103

3"

72.2

91

158

220

114

DN80

81

106

158

230

123

4"

97.6

119

192

240

135

5"

120

145

230

260

160


适用于锂电池行业

Applicable to lithium battery industry

应用 Applications

该球阀根据生物制药、食品饮料、酿酒、化工等管道设计。

The ball valve based on biological pharmaceuticals, food and beverage, wine, chemical and other pipeline design.

技术特点 Application

无滞留高洁净,扭矩小寿命长特点,正常开关次数达20万次上,耐高温180℃,压力30bar,拆洗方便。无抛光处理,全锻制生产。

No retention of high-clean, long life characteristics of small torque, the number of normal switching up to 20 million times, high temperature 180 ℃, pressure 30bar, Easy dismantling and cleaning. No polishing treatment, all forging production.
