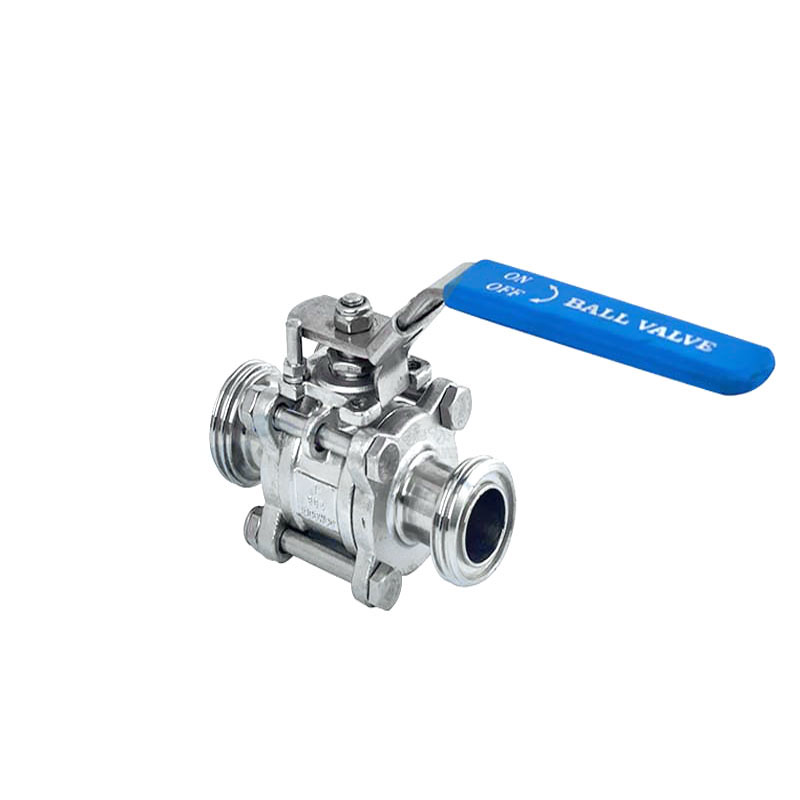

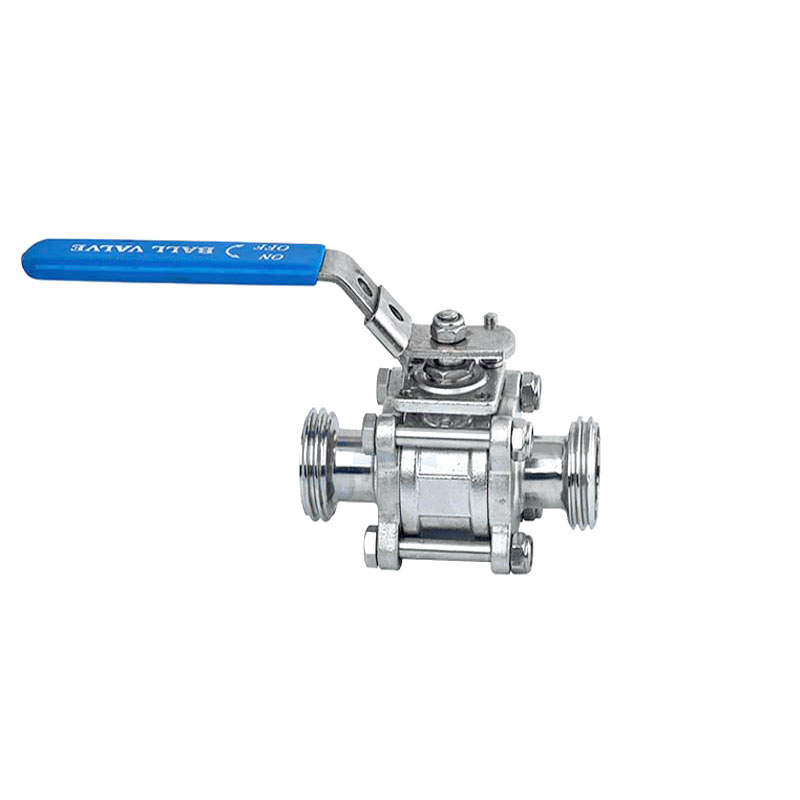

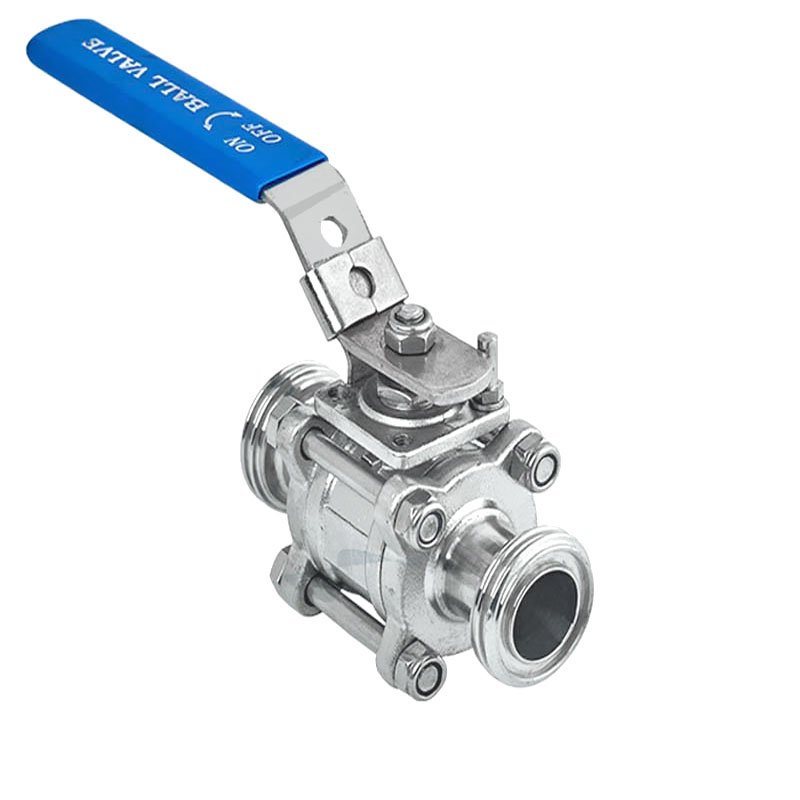

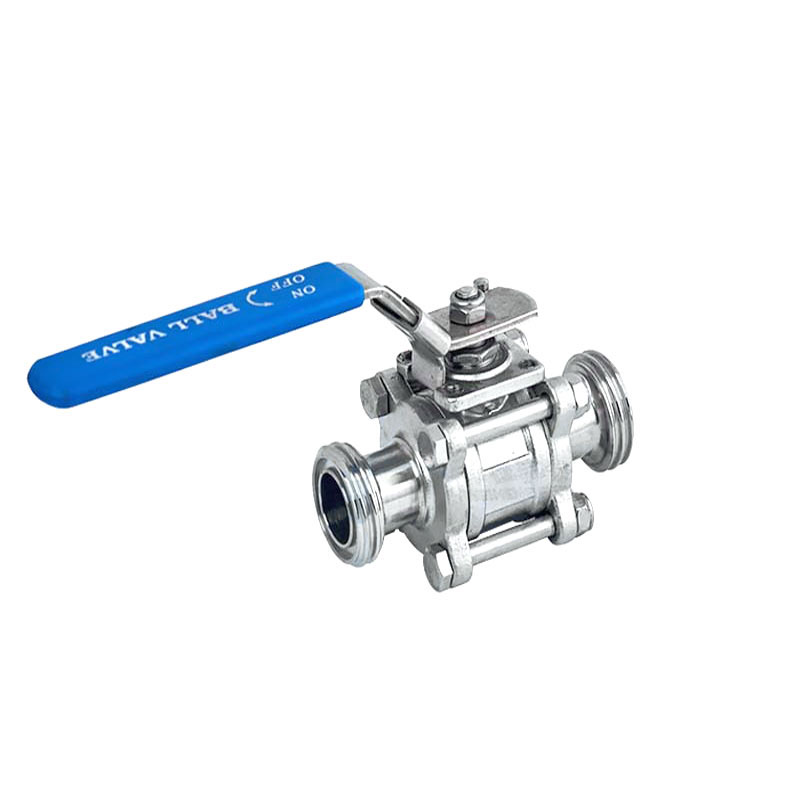

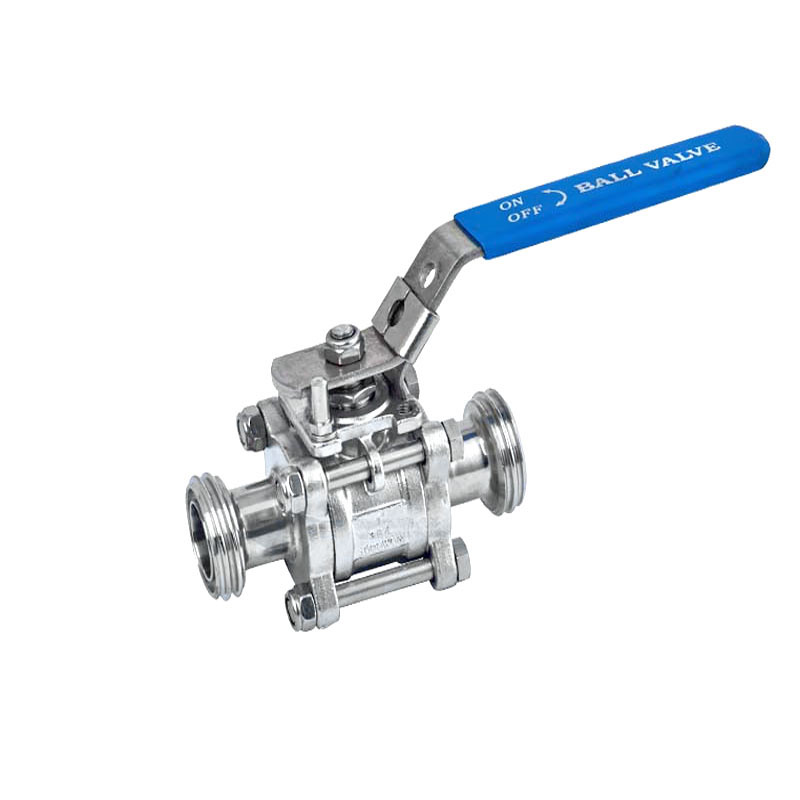

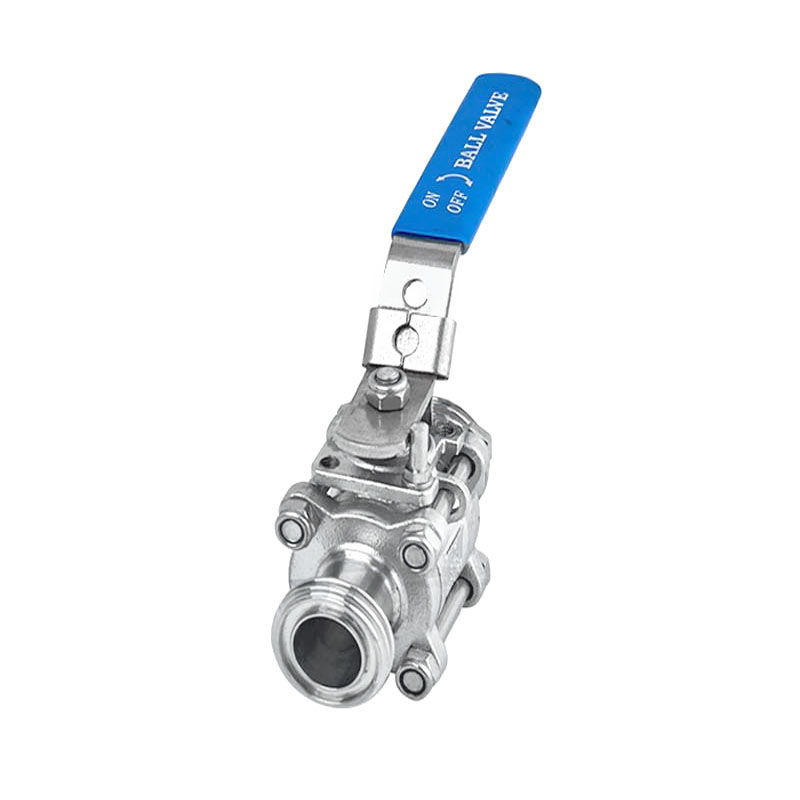

Sanitary three piece external thread ball valve
Application
VFN series is a three clip / male end sanitary ball valve, which is widely used to control medium flow in food and beverage processing, wine making, oil refining, cosmetics, pharmaceutical, chemical and other industries. The full channel design makes it the best choice for viscous and granular liquids. This is an economic choice!
Standard design
·Connection: three clamp, external thread
·Standard: 3A, SMS, DIN
·Operation: manual, pneumatic, electric
·With or without position sensor and solenoid valve
Technical specifications
Material: SS304 or SS316L
Seat gasket: PTFE
Working pressure: max. 800kpa (8 bar) / 115 PSI
Temperature range: - 10 ° C to 120 ° C
Executing agency
Air pressure: 4-7 bar
Temperature range: - 25 ° C to 120 ° C

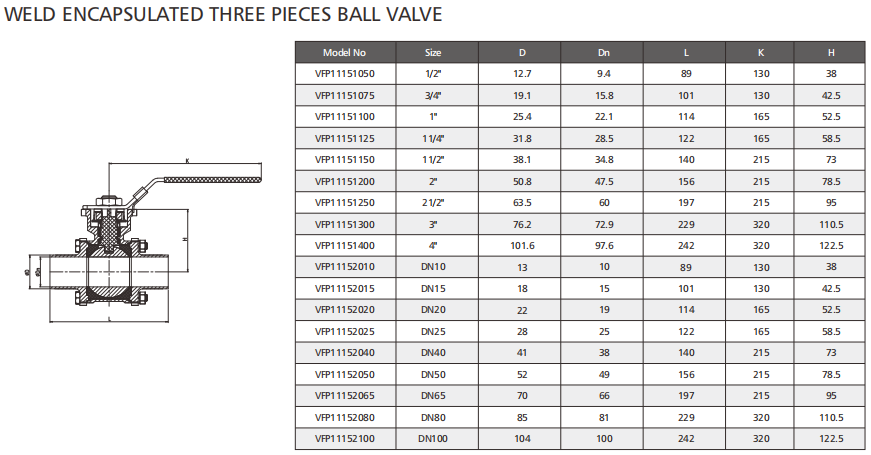

Technical parameter
